Lama Roll and Pressed Formed Metal Door Frames are supplied complete with hinge and lock striker preparations, ready for installation in all types of masonry stud frame walls.

Custom orders can be supplied at short notice and can be manufactured to any size or profile. Standard sizes are available ex-stock. Lama Roll or Pressed Formed Window Frames can also be made with solid steel rod security bars with or without permanent or adjustable louvres in any size and a range of profiles.

Fixing Lama Metal Door Frames is simple. For brickwork, galvanised steel wire ties or coated steel door frame brackets are supplied, with each wire tie clipping into the jambs and fixing to timber or metal stud walls. For existing openings, Lama Metal Door Frames have holes prepared for Dynabolt Fixing. Standard height door frames have four fixing points per side.

Pressed metal spreader bars, which support the frame during transport, are easily removed after the frame installation is complete.

.....................................................................

STEP BY STEP INSTALLATION PROCESS

Mark out where the brickwork and the door is going.	Drive the nails into the ends of two lengths of timber. These are used to prop up door frame. Stand up the door frame, remembering to check which way the door is hinged. Hook the nail onto the top edge of the frame.
Using a spirit level, plumb the frame by moving the stays. When it is plumb, secure the timber stays with a couple of bricks.	You are now ready to start the brickwork. Proceed laying the bricks into the rebate at the back of the frame.
Place mortar into the gap between the brick and the frame as you go along. This will fill the frame with cement and make it rigid and strong. The frame thus becomes an integral part of the wall's construction and adds to the strength. Furthermore, this guarantees that the wall is plumb and of uniform thickness.	Each steel door frame is supplied with a quantity special wire brick ties. These should be used to tie in the brickwork every fourth or fifth brick course. Note: Once the mortar is set remove the spreader bar at base of frame

....................................................................

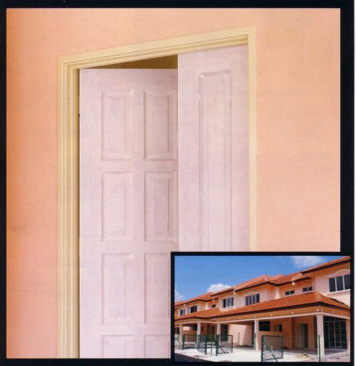

COMPLETED INSTALLATION
